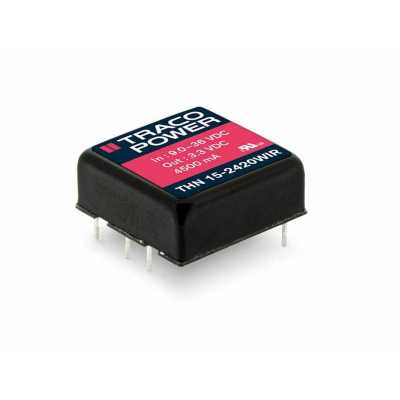

tracopower電源THN 15-4812WIR

The THN 15WIR series is a family of ruggedized 15 W DC/DC converters for highest reliability in harsh environments. The converters have an increased resistance against electromagnetic interference, shock/vibration and thermal shock. The approvals according to standards EN 50155 and EN 61373 qualify them for railway and transportation systems. The qualification for the fire behaviour of components according to EN 45545-2 and the safety approval according IEC/EN 60950-1, UL60950-1 support a potential compliance test of the application. Built-in EMI 55022 class A filter, input under-voltage-lockout, short circuit protection, remote On/Off and output voltage trim are further features which facilitate the design in.

THN 15WIR系列是堅固耐用的15w DC/DC轉換器系列，可在惡劣環境中獲得***高可靠性。該轉換器具有更高的抗電磁干擾、沖擊/振動和熱沖擊性能。根據EN 50155和EN 61373標準的批準，使其具有鐵路和運輸系統的資格。根據EN 45545-2對組件的火災行為進行鑒定，并根據IEC/EN 60950-1, UL60950-1進行安全批準，支持應用的潛在合規性測試。內置EMI 55022 A類濾波器，輸入欠壓鎖定，短路保護，遠程開/關和輸出電壓修剪是進一步的特點，便于設計。

規范
輸出電壓
12伏直流
輸出調整1
10.8 - -13.2伏直流
輸出電流
1300毫安
額定功率
15.6 W
輸出數
單
輸入電壓
18 - 75 VDC
住房類型
金屬外殼
越來越多的類型
PCB山
連接類型
足跡類型
1英寸x 1英寸
長度
25.4毫米
寬度
25.4毫米
深度
9.9毫米
效率
89%
***高溫度
90°C
***低溫度
-40°C
